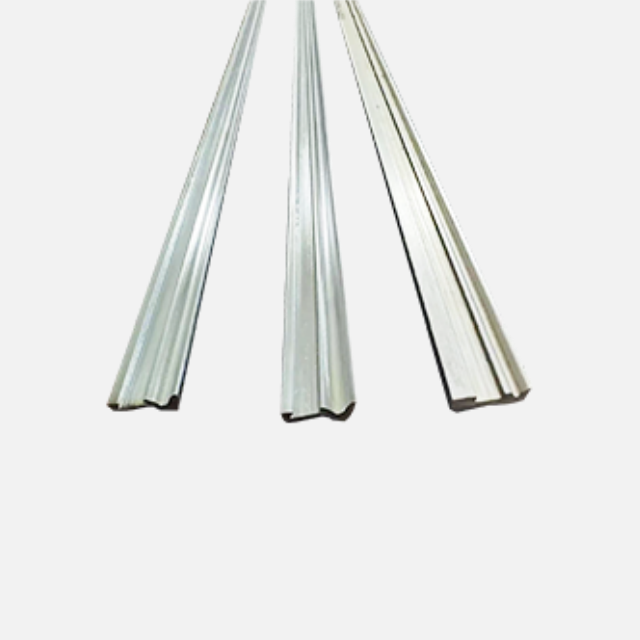

| C5 Style Wipers |
The C5 style wiper offers enhanced durability and rigidity with a wider profile, ensuring stronger adhesion during spot-welding. It can be easily installed by screwing directly into the box. Key features include replaceable wiper lips for simplified maintenance and a low-profile design for seamless integration.
| Properties |
● Designed for large covers
● Replaceable wiper lips
● A combination of C5 and C3 wipers is possible
● Optimum rigidity of the cover box in the wiper area
● Enlarged return gutter to ensure a rapid draining of the coolant

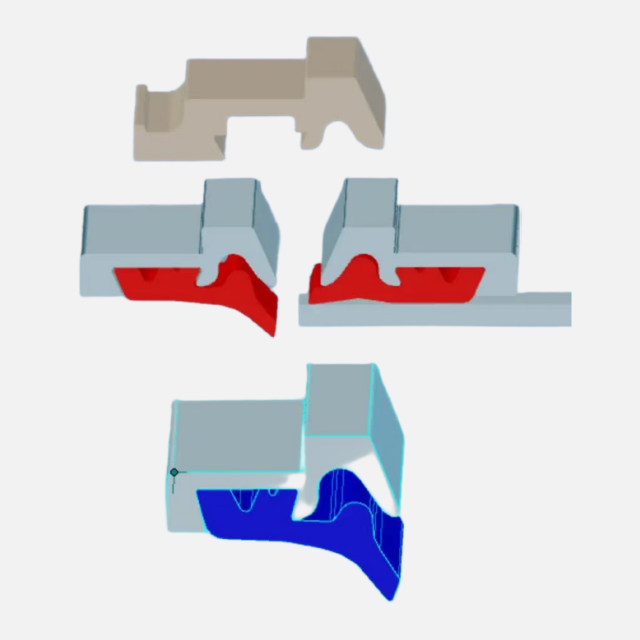

● Available with and without damping (illustration: C5 with damping)
| Composition |

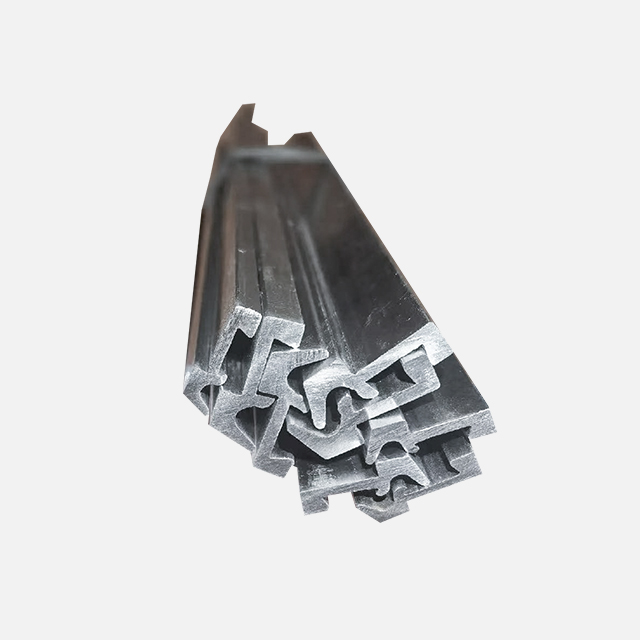

This series is made up of a steel protective profile and a polyurethane lip.
Materials: stainless steel, steel and polyurethane
| Mounting |
Generally, with spot welds, can also be assembled by means of screws or rivets.
| Technical Information |

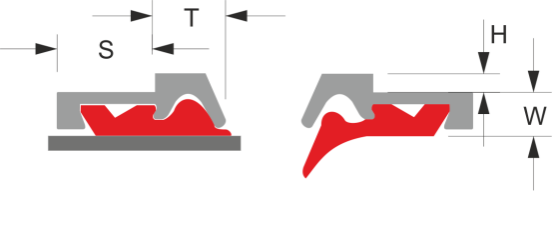

| ITEM NO. | S | H | W | T |
| C5 | 9.48 mm | 2.5 mm | 4.20 mm | 4.65mm |
| ITEM NO. | ||||
| Length | Length | Casing | Lip | |
| C5 | 1000/2000/3000 mm | Stainless Steel/ | PU 85 | |
| Steel | Red / White/ Transparent | |||
* The profile and the polyurethane lip can be supplied separately.
| C5 Style Wipers |
The C5 style wiper offers enhanced durability and rigidity with a wider profile, ensuring stronger adhesion during spot-welding. It can be easily installed by screwing directly into the box. Key features include replaceable wiper lips for simplified maintenance and a low-profile design for seamless integration.
| Properties |
● Designed for large covers
● Replaceable wiper lips
● A combination of C5 and C3 wipers is possible
● Optimum rigidity of the cover box in the wiper area
● Enlarged return gutter to ensure a rapid draining of the coolant
● Available with and without damping (illustration: C5 with damping)
| Composition |
This series is made up of a steel protective profile and a polyurethane lip.
Materials: stainless steel, steel and polyurethane
| Mounting |
Generally, with spot welds, can also be assembled by means of screws or rivets.
| Technical Information |
| ITEM NO. | S | H | W | T |
| C5 | 9.48 mm | 2.5 mm | 4.20 mm | 4.65mm |
| ITEM NO. | ||||
| Length | Length | Casing | Lip | |
| C5 | 1000/2000/3000 mm | Stainless Steel/ | PU 85 | |
| Steel | Red / White/ Transparent | |||
* The profile and the polyurethane lip can be supplied separately.
| C5 Style Wipers |
The C5 style wiper offers enhanced durability and rigidity with a wider profile, ensuring stronger adhesion during spot-welding. It can be easily installed by screwing directly into the box. Key features include replaceable wiper lips for simplified maintenance and a low-profile design for seamless integration.
| Properties |
● Designed for large covers
● Replaceable wiper lips
● A combination of C5 and C3 wipers is possible
● Optimum rigidity of the cover box in the wiper area
● Enlarged return gutter to ensure a rapid draining of the coolant
● Available with and without damping (illustration: C5 with damping)
| Composition |
This series is made up of a steel protective profile and a polyurethane lip.
Materials: stainless steel, steel and polyurethane
| Mounting |
Generally, with spot welds, can also be assembled by means of screws or rivets.
| Technical Information |
| ITEM NO. | S | H | W | T |
| C5 | 9.48 mm | 2.5 mm | 4.20 mm | 4.65mm |
| ITEM NO. | ||||
| Length | Length | Casing | Lip | |
| C5 | 1000/2000/3000 mm | Stainless Steel/ | PU 85 | |
| Steel | Red / White/ Transparent | |||
* The profile and the polyurethane lip can be supplied separately.
