CNC machine way wiper systems are engineered to prevent contaminants such as chips, dust, and liquids from entering critical machine components, ensuring smooth operation and extending the lifespan of your equipment.
With low sliding friction and excellent resistance to abrasion, chemicals, coolants, minerals, oils, and acids, these wipers are designed to support long-lasting reliability in your slide ways.
Special materials and hardness available depending on application.
● Customizable to your needs
● Available wiper materials: NBR (nitrile butadiene rubber), FPM (fluorocarbon elastomer)
● High - Grade Material Construction: Steel, Aluminum
● Low sliding friction
● Resistance to abrasion, chemicals, coolants, minerals, oils, acids
Wipers of this type are compact and are notable for high shape accuracy and dimensional accuracy.
It is manufactured in various forms, thus guaranteeing high repeatability.
| Properties |
1. Durable Construction:
✔ Aluminum/steel casings + wear-resistant PU wiper lips.
✔ Built for harsh conditions.
2. Contaminant Protection:
✔ Blocks chips, dust, coolants, and oils.
✔ Reduces downtime, maintains precision.
3. High Resistance:
✔ Resists abrasion, hydrolysis, oils, coolants, UV.
✔ Operates from -40°C to 100°C. briefly up to 140 °C
4. Modular Design:
✔ Replaceable wiper lips for easy, cost-effective maintenance.
5. Customizable:
✔ Various sizes, shapes, and configurations.
✔ Fits telescopic covers, bellows, and more.
6. Easy Installation:
✔ Pre-drilled holes + standardized mounts.
✔ Minimizes downtime.

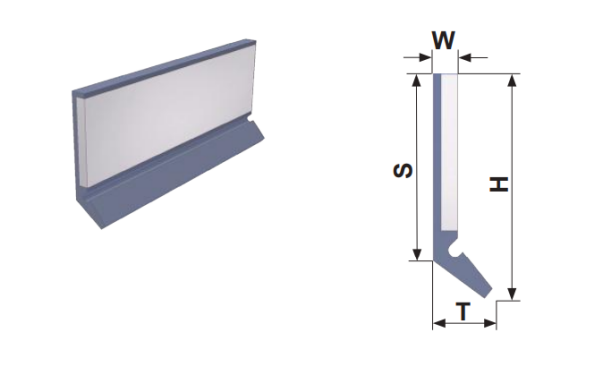

| Type | H(mm) | S(mm) | W(mm) | T(mm) | Length(mm) | Elast. |
| 1 | 9.45 | 7.45 | 2.45 | 4.95 | 1000 | NBR |
| 2 | 14.95 | 11.45 | 4.95 | 6.95 | 1000 | FPM |
| 3 | 17.95 | 14.95 | 4.95 | 8.95 | 1000 | NBR |
| 4 | 20.95 | 17.45 | 4.95 | 6.95 | 1000 | FPM |
